Mecanum Vehicles

You will find the right complete vehicle for many applications here.
Our vehicles are available as hand-guided industrial trucks (radio remote control) or as driverless transport vehicles.

DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy

Product code 9067000

DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy

Base vehicle for the CALL THE DONKEY automated guided vehicle system. The AGV automatically attaches the variable load modules and can thus carry out transport orders with different loads.

Extremely compact AGV with a payload of 1 t: 1180 x 590 x 240 mm (L x W x H).

DONKEY-S-HL-1206-Lift-Joy

Product code 9067017

DONKEY-S-HL-1206-Lift-Joy

Compact, omnidirectional industry truck controlled by radio remote control. Extremely small dimensions (L x W x H = 1180 x 590 x 240 mm). 1 t payload or 1.5 t in towing mode.

Omnidirektional movement due to Mecanum wheels.

DONKEY-M-NL-1612-Lift-Joy

Product code 9060147

DONKEY-M-NL-1612-Lift-Joy

Compact, omnidirectionally manoeuvrable industrial truck, controlled by radio remote control. The very flat design with 330 mm enables driving under assembly platforms or work equipment.

The powerful lifting system couples various load platforms from below and builds up the wheel contact pressure. In this way, the enormous drive force can be transferred to the ground and loads of over 8 t can be moved. Of course, the vehicle can also directly carry loads of up to 2.25 t with or without lifting.

DONKEY-M-HL-1612-Lift-Joy

Product code 9060140

DONKEY-M-HL-1612-Lift-Joy

Compact, omni-directionally manoeuvrable industrial truck, controlled by radio remote control. The very flat design with 330 mm enables driving under assembly platforms or work equipment. The powerful lifting system allows various load platforms to be coupled from below and the wheel contact force to be built up.

The DONKEY-M-HL-1612 in the high load version is our strongest complete vehicle with its enormous torque. In this variant, the DONKEY is the towing animal for the heaviest loads over 10 t.

Base-S-HL-1909-Laser-Optical-Lift-Joy

Product code 9067021

Base-S-HL-1909-Laser-Optical-Lift-Joy

Mecanum industrial truck with load capacity up to 1.5 t, to be increased even further by towing application.

The Base-S series combines our standards with additional components to meet specific customer requirements in intralogistics.

Shown here is a vehicle with two cameras for optical guidance and three laser scanners for people recognition.

Building Kits S&M

With the components of our S system you create compact vehicles reaching typical payloads of 1 ton or more. Use coupled master/slave systems for increased load and motor power, or just our support axles to increase your payload. Otherwise we refer to our larger components of the M system.

DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy

Product code 9060022

MecanumDriveS-HL (40-92-L)

Compact wheel drive unit, consists of Mecanum wheel, gearbox, motor, and electromechanical brake. Axial cable outlet. To be mounted to varying Mecanum systems. Plug-and-Play installation with our range of DonkeyMotion system kit components.

Precise rolling bearings and a modern technical design lead to low-vibration performance of our Drive units. Supports modular design of vehicles, hence easy exchange in maintenance cases.

DONKEY-S-HL-1206-Lift-Joy

Product code 9060052

MecanumDriveS-HL (40-92-R)

Compact wheel drive unit, consists of Mecanum wheel, gearbox, motor, and electromechanical brake. Axial cable outlet. To be mounted to varying Mecanum systems. Plug-and-Play installation with our range of DonkeyMotion system kit components.

Precise rolling bearings and a modern technical design lead to low-vibration performance of our Drive units. Supports modular design of vehicles, hence easy exchange in maintenance cases.

DONKEY-M-NL-1612-Lift-Joy

Product code 9060070

MecanumPowerBoxS

Amplifier and I/O unit, controller for 4 MecanumDriveS-NL or S-HL.

To be connected to the Drives, battery system, and safety PLC MecanumBrain.

Inputs and outputs to control additional actuators like our lift systems, or other customer-related tasks.

DONKEY-M-HL-1612-Lift-Joy

Product code 8160005

MecanumBrain

Safety controller for DonkeyMotion Mecanum systems.

Connection to our MecanumPowerBox with Plug-and-Play cable set.

DONKEY-S-HL-1206-Laser-NavPrep-Lift-Joy

Product code 9060094

MecanumDriveM-HL (64-92-L)

Drive unit consisting of Mecanum wheel, gear, motor and brake; for attachment to Mecanum systems of various types.

In combination with our DONKEYmotion system components, plug-and-play installation.

DONKEY-S-HL-1206-Lift-Joy

Product code 9060098

MecanumDriveM-HL (64-92-R)

Drive unit consisting of Mecanum wheel, gear, motor and brake; for attachment to Mecanum systems of various types.

In combination with our DONKEYmotion system components, plug-and-play installation.

DONKEY-M-NL-1612-Lift-Joy

Product code 9060073

MecanumPowerBoxM

The amplifier unit for controlling the MecanumDriveM wheel hub drives.

For connecting four MecanumDriveM, the traction battery and the central control MecanumBrain.

Incl. inputs and outputs for controlling further actuators of the customer's setup.

DONKEY-M-HL-1612-Lift-Joy

Product code 8160005

MecanumBrain

Safe control of the DONKEYmotion Mecanum systems.

Connection to MecanumPowerBox via cable set supplied.

Orbiter Stage Technology

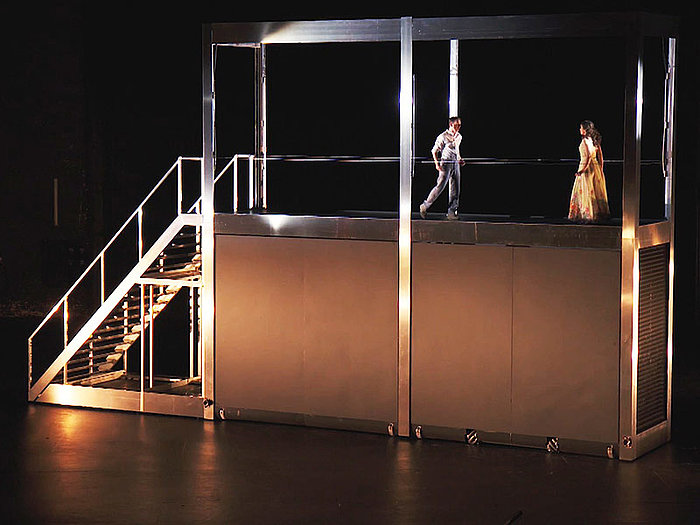

Orbiter Stage Technology – stage application

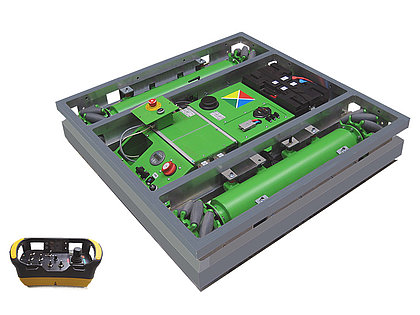

Orbiter Stage Technology – technical platform
